Program Location: North America

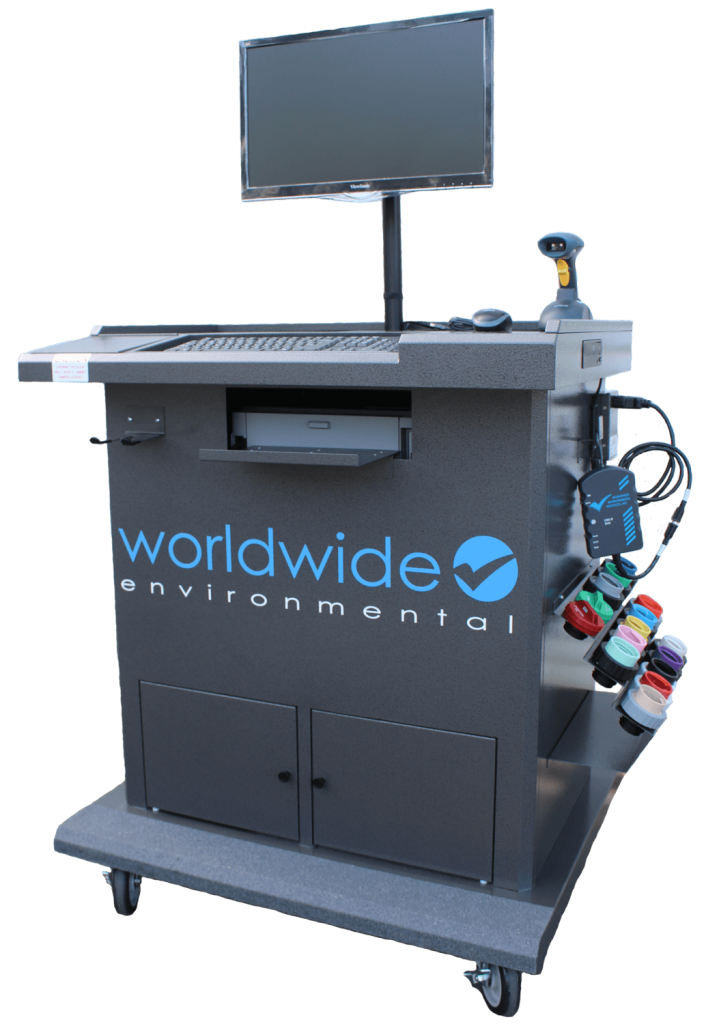

EIS 5000 Phase V Analyzer

  • All Steel Cabinet with Smallest Footprint
  • Dual Wired/Wireless OBDII Data Acquisition Device
  • Integrated OBDII Verification Tool and Charger
  • 4 or 5 Gas Analyzer
  • Patented Thermal Sample Chiller
  • Optional Zero Air Generator
  • Integrated Gas Cap Tester and Adapters
  • Contact & Non-Contact RPM Probes
  • Wired or Wireless 2D Barcode Scanner
  • High-Quality Computer Components with Windows OS
  • 22″ Mounted LCD Color Monitor
  • Biometric Finger Vein Reader
  • Certified over 19 Years with Mustang, Clayton and Maha Dynamometers
  • Standard Warranty Included
  • Purchase, Finance and Rental Options

Georgia GCAF Phase V EIS 5000 Product Sheet


Designed and Manufactured in the U.S. using premium quality components to ensure high throughput testing and equipment longevity for High-Speed Connections

All components necessary to perform the State mandated vehicle emissions inspection in the State of Georgia

OBDII Manual Mode provides the ability to verify a vehicle is ready for inspection and information for vehicle issue diagnosis

Integrated Battery powers the OBDII DAD when no voltage is present at the DLC, and automatically charges when connected to the Verification Tool on the Cabinet or a vehicle with available power

OBDII DAD LED Status Lights indicate when the vehicle DLC power is present, when the DAD is charging and when the DAD is connected, both to a vehicle and the analyzer computer

The Wi-Fi Advantage Our dual Wired/Wireless OBDII DAD uses Wi-Fi rather than Bluetooth to ensure a longer range of communication as well as negate all Bluetooth connectivity issues created from vehicle cabin shielding

Integrated Gas Cap Tester and Lightweight Stant Adapters provide a user-friendly, efficient and cost-effective complete gas cap testing solution

Optional Zero Air Generator offers a more cost-effective and environmentally friendly solution for necessary zero air gas

Field Service Technicians and Remote Technical Experts provide the largest service and support network in Georgia to guarantee less downtime

Georgia Vehicle Emissions Inspection / Maintenance Program

Since 2008, Worldwide has been providing certified emissions inspection equipment to licensed inspection stations in the State of Georgia as part of the Georgia Vehicle Emissions Inspection / Maintenance Program with the Georgia Clean Air Force (GCAF).

Worldwide’s EIS 5000 is certified by GCAF and the Department of Natural Resources to meet the State’s specifications for vehicle emissions inspection equipment in Georgia.

Worldwide provides its certified emissions analyzers and maintenance and support services in the 13 county metro Atlanta area consisting of the following counties:

  • Cherokee, Clayton, Cobb, Coweta, DeKalb, Douglas, Fayette, Forsyth, Fulton, Gwinnett, Henry, Paulding, and Rockdale.

For equipment orders, please email or call 800.832.7664 or 714.990.2700.
